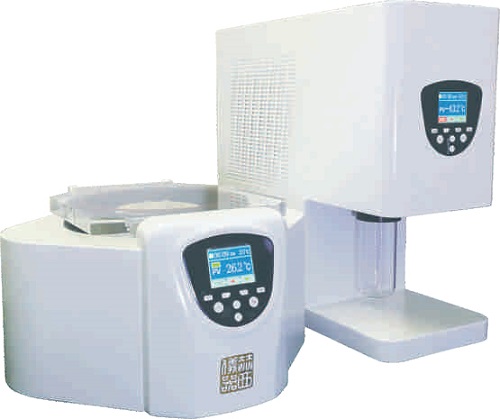

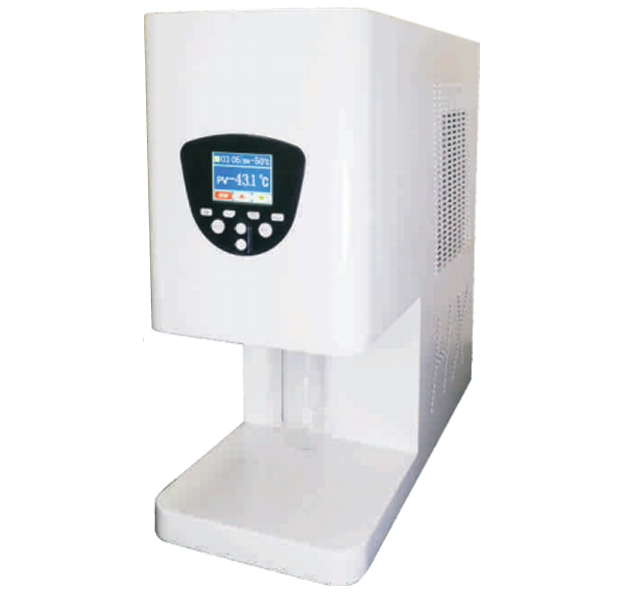

Low temperature cold trap CT-50 Product Name：Low temperature cold trap CT-50 Max Centrifugalforce:Optional Max Speed(r/min):0 PIN:Ct-50 low temperature cold tra Brand:HEREXI Measurement:platform Weight:54kg The cold trap can be used with vacuum centrifugal concentrator. The evaporation rate is affected not only by the intake of energy, but also by the pump speed of the vacuum pump. The larger sample evaporation surface area is the bottleneck of vacuum pump efficiency, not the sample volume and quantity. It is more effective to use a cold trap than a larger vacuum pump. Because of the use of the cold trap, on the one hand, it is conducive to the condensation of water vapor, on the other hand, the evaporation density of organic solvent is increased, so it is easier to condense.   Product Details Low temperature cold trap CT-50 Product Name: low temperature cold trap Brand: HEREXI Product unit: platform Refrigeration mode: compressor refrigeration, environmental protection refrigerant Circulation mode: closed circulation Overall dimension: 580x250x560mm Maximum power: 380W Pagoda interface: φ 12mm Weight: 54kg   The evaporation rate is affected by the absorbed energy and the speed of vacuum pump. The evaporation surface area of a sample is relatively large, rather than the volume and quantity of samples. Therefore, it is better to use a cold trap than to use a larger vacuum pump. On the one hand, the application of cold trap is helpful to condense steam, on the other hand, it can improve the evaporation density of organic solution for better condensation. Product Details   features: TFT true color touch screen display temperature Cold trap Capacity: optional Temperature range: normal temperature to - 45 ° C Limit temperature: - 50 ° C Maximum capture capacity of concentration condensation: medium: water 260ml / 12h temperature setting - 15 recommended 300ml collection bottle Medium: ethanol 284ml / 6h, temperature setting - 35 ℃ to - 40 ℃, 600ml collecting bottle is recommended Condensing area of collecting chamber: 760 cm Safety function: compressor overload protection, compressor timing protection, high voltage switch protection, temperature self-regulation, defrosting Compressor coolant: R404A Temperature regulation: ± 1 ° C   Circulation: closed cycle       Related centrifuge Desktop high speed centrifuge 3H series intelligent high speed freezing centrifuge Tgl20mw table type large capacity high speed freezing centrifuge HR / t16m HR / t20m table type high speed freezing centrifuge HR / t16mm miniature high speed freezing centrifuge Tg16mw desktop high speed centrifuge H / t12mm H / t16mm H / t18mm table type high speed centrifuge Table type low speed centrifuge (below 1000r / min) TDL5M / 6m / 8m desktop low speed refrigeration DD5 desktop high capacity low speed centrifuge TD6 / tdz6-ws table type low speed multi station centrifuge Td5 / td5a table type low speed centrifuge Tdz5 / tdz5-ws table type low speed centrifuge TD4 / tdz4 / tdz4-ws table type low speed centrifuge Independent high speed freezing centrifuge (above 1000r / min) Hr26m high speed freezing centrifuge Hr21m / hr20m high speed freezing centrifuge HR / t20mm independent high speed freezing centrifuge Independent low speed centrifuge (below 1000r / min) Lrm-12l super capacity cryocentrifuge Es5000 intelligent electronic balance Lr10m large capacity refrigerated centrifuge Lr6m / lr7m / lr8m low speed and large capacity refrigerated centrifuge Tl5r / tl6r / tl8r self standing low speed freezing centrifuge R5m / dd5m independent low speed centrifuge Special centrifuge DD5 / dd5m / tl5r automatic decapitation centrifuge H / t12mm blood centrifuge Tlw5r desktop chrysanthemum centrifuge Td5t / lt6y petroleum centrifuge Vacuum concentration centrifuge series Zls-4 vacuum centrifugal concentration system Cold trap
